Gantry Solution

• Accuracy
• 0.2 mm

• Color
• White & Grey

• Connectivity Options
• Ethernet, RS485

• Control System
• Other, PLC Control with HMI

• Cooling System
• Air Cooled

• Dimension (L*W*H)
• 3100 x 900 x 1850 mm

• Drive
• Servo Motor

• Features
• High repeatability, easy programming, lightweight arm, automatic part detection

• Frame Type
• Rigid aluminium

• Frequency
• 50 Hz

• Lubricating System
• Automatic lubrication system

• Machine Type
• Gantry Robot

• Model No
• IMTG-1200

• Motor Power
• 1.5 kW

• Noise Level
• Less than 75 dB

• Operating Temperature
• 5 - 45C

• Operating Type
• Automatic

• Plastic Processed
• All standard injection moulding plastics

• Power
• 2.5 kW

• Power Rating
• 2.5 kW

• Power Source
• Other, Electric

• Pressure
• Adjustable up to 7 bar

• Product Type

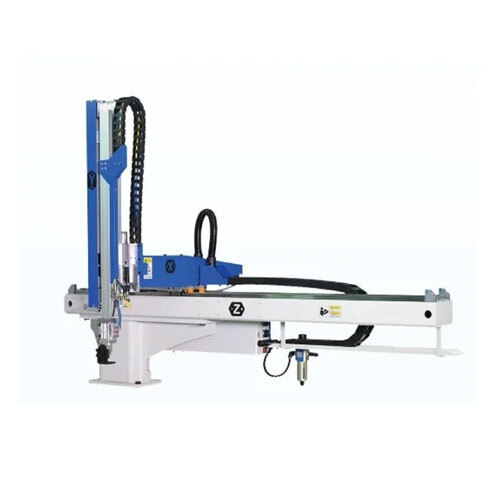

• Other, Injection Moulding Take-out Gantry

• Production Capacity
• 60 cycles/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Servo Motor Driven Automation

• Usage & Applications
• Take-out automation for injection moulding machines

• Voltage
• 220V/380V

• Weight (kg)
• 750 kg

• Accuracy
• 0.01 mm

• Color
• Industrial Grey + Blue

• Connectivity Options
• USB, Ethernet

• Control System
• Other, CNC Controller (Siemens/Fanuc/Equivalent)

• Cooling System
• Water Cooled Spindle

• Dimension (L*W*H)
• 3500 mm x 2000 mm x 1800 mm

• Drive
• Servo Motor Drive System

• Features
• Heavy-duty frame, high accuracy, stable structure, advanced linear rail system

• Frame Type
• Welded Gantry Frame

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic Central Lubrication

• Machine Type
• 3-Axis/4-Axis Gantry CNC

• Model No
• GM-3500CNC

• Motor Power
• 3.5 kW Servo Motor

• Noise Level
• <75 dB(A)

• Operating Temperature
• 0C to 45C

• Operating Type
• Automatic

• Power
• 7.5 kW

• Power Rating
• 7.5 kW

• Power Source
• Other, Electric

• Pressure
• Mechanical Pressure, not applicable to pneumatic/hydraulic models

• Product Type

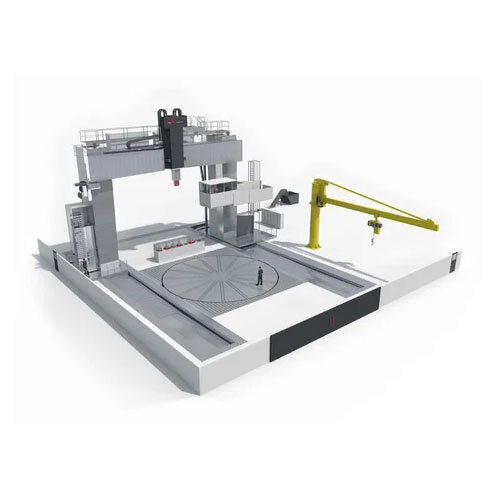

• Other, CNC Machine Gantry

• Production Capacity
• 80 Units/Month

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, CNC (Computer Numerical Control)

• Usage & Applications
• Precision milling, cutting, engraving and machining of metal and non-metal materials

• Voltage
• 380 V

• Weight (kg)
• Approx. 2500 kg

• Accuracy
• High precision handling

• Color
• Yellow & Black

• Connectivity Options
• Wired/Remote Control

• Control System
• Other, Push Button/Remote

• Cooling System
• Air-cooled Electric Motor

• Dimension (L*W*H)
• Customizable as per Requirement

• Drive
• Motorized

• Features
• Heavy Duty, Corrosion Resistant, Easy Operation

• Frame Type
• Modular Welded Structure

• Frequency
• 50 Hz

• Lubricating System
• Manual Grease Lubrication

• Machine Type
• Industrial Gantry Crane

• Model No
• MHC-101

• Motor Power
• 2 HP

• Noise Level
• <75 dB

• Operating Temperature
• -10C to +50C

• Operating Type
• Automatic

• Power
• 2 HP (Typical)

• Power Rating
• 1.5-3 kW

• Power Source
• Other, Electric

• Product Type
• Other, Material Handling Gantry

• Production Capacity
• 5-10 Tons/hr

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Electric Motor Driven

• Usage & Applications
• Industrial material handling, lifting, and moving operations

• Voltage
• 415 V

• Weight (kg)
• Approx. 850 kg
